Standard aluminum extrusion catalog

Browse Aluminum Profiles

Compare confirmed profile families, then share your required dimensions, finish, quantity and destination for a practical sourcing discussion.

Chat on WhatsApp
Showing 27 of 27 productsShare profile type, dimensions, alloy or finish, quantity, machining needs and destination.
Silver surface and flanged recessed LED channels with a black open corner profile and an opal diffuser
LED Channel Extrusions

LED-CHANNEL-EXTRUSION

LED Channel Extrusion for LED Strip Lighting

Choose an LED channel extrusion that fits the strip and connector, supports the required light appearance and suits the installation space. Aluminum Profile Works supplies standard and custom sections for lighting OEMs, project buyers and distributors. Use the dimension guide and worked examples below, then send your component sizes, cover requirement, cut list and quantity for a quotation.

Profile series
LED strip mounting channels
Confirmed section information
Surface, recessed, corner and custom sections
System
Universal section
Three-quarter view of a silver aluminum enclosure extrusion with an open cavity, internal PCB guides and four corner channels
Enclosure Extrusion Profiles

ENCLOSURE-EXTRUSION-PROFILE

Enclosure Extrusion Profile

An Enclosure Extrusion Profile forms the aluminum body of an electronics housing. Aluminum Profile Works supplies standard and custom specifications for equipment manufacturers and B2B buyers. Check the PCB space and mating interfaces, work through a thickness-clearance example, and identify whether your requirement needs cutting, local machining or a different cross-section before requesting a quote.

Profile series
Aluminum electronics enclosure bodies
Confirmed section information
Standard and custom sections; define internal clearance, PCB guides, end-panel interfaces and finished length by drawing
System
Universal section
Three silver aluminum solar mounting rail samples with open upper channels and rectangular lower cavities on a white surface
Solar Mounting Rails

SOLAR-MOUNTING-RAIL

Solar Mounting Rail

A Solar Mounting Rail supports photovoltaic modules and connects their clamps to the mounting structure. Aluminum Profile Works supplies aluminum rail profiles in standard and custom specifications for B2B buyers. Compare reference sections, define the mating interfaces and send your drawing, material, finish, finished length and quantity for a quote.

Profile series
PV module support rail extrusions
Confirmed section information
Standard and custom sections; specify clamp channel, splice cavity, support interface and finished length by drawing
System
Universal section
Three silver aluminum PV perimeter frame extrusions showing an open upper groove, hollow lower cavity and mounting flange
Solar Panel Frame Profiles

SOLAR-PANEL-FRAME

Solar Panel Frame Profile

A Solar Panel Frame Profile forms the perimeter of a photovoltaic module, bringing the laminate edge, corner connection and mounting interface into one design. Compare published reference sections, work through a finished-member quantity example and check assembly fit before sending Aluminum Profile Works your drawing for supply review and a quote.

Profile series
PV module perimeter frame extrusions
Confirmed section information
Drawing-defined glass channel, corner-key cavity and mounting flange; confirm dimensions and cut lengths by inquiry
System
Universal section
Three silver unequal-leg aluminum angles with open L-shaped cut ends and one leg visibly wider than the other
Aluminum Angles

UA6063-T5

Unequal Angle 6063-T5

Unequal Angle 6063-T5 is an L-shaped aluminum extrusion that combines a wide fixing face with a narrow return for corners needing different coverage on each side. Compare reference sizes for panel edges, display details and enclosures, then check orientation and corner clearance. Send Aluminum Profile Works your dimensions, cut lengths, quantity and finish requirement for supply review and a quote.

Profile series
Unequal-leg aluminum angle 6063-T5
Confirmed section information
Unequal outside legs A × B and thickness t; confirm the selected dimensions and cut lengths by inquiry
Alloy / temper
6063-T5
System
Universal section
Three silver equal-leg aluminum angles with clean L-shaped ends on a pale gray surface
Aluminum Angles

EA6063-T5

Equal Angle 6063-T5

Equal Angle 6063-T5 is an L-shaped aluminum extrusion with two equal-length legs. Compare reference sections, check corner fit and estimate material for trim, display and enclosure details. Send Aluminum Profile Works your dimensions, cut lengths, finish requirement and quantity for supply review and a quote.

Profile series
Equal-leg aluminum angle 6063-T5
Confirmed section information
Equal outside legs A × A and thickness t; specify dimensions and length for supply confirmation
Alloy / temper
6063-T5
System
Universal section
Silver aluminum rectangular hollow tubes with unequal sides and visible open ends
Aluminum Tubes

RECT6063-T5

Rectangular Tube 6063-T5

Source Rectangular Tube 6063-T5 for architectural details, display frames, furniture and fabricated assemblies. Compare 66 metric and inch sections, select mill, anodized or powder-coated finish, and send your dimensions and cut list to Aluminum Profile Works for a project quote.

Profile series
Rectangular tube
Confirmed section information
Unequal outside sides × wall thickness; discrete metric and inch sections
Alloy / temper
6063-T5
System
Universal section
Available finishes
Mill finish · Anodized · Powder coated
Silver aluminum square hollow tubes with equal sides and open square ends
Aluminum Tubes

ST6063-T5

Square Tube 6063-T5

Source Square Tube 6063-T5 for architectural details, display frames, furniture and fabricated assemblies. Compare metric and inch sections, choose mill, anodized or powder-coated finish, and send your dimensions and cut list to Aluminum Profile Works for a project quote.

Profile series
Square tube
Confirmed section information
Equal outside sides × wall thickness; metric and inch sections available for quotation
Alloy / temper
6063-T5
System
Universal section
Available finishes
Mill finish · Anodized · Powder coated

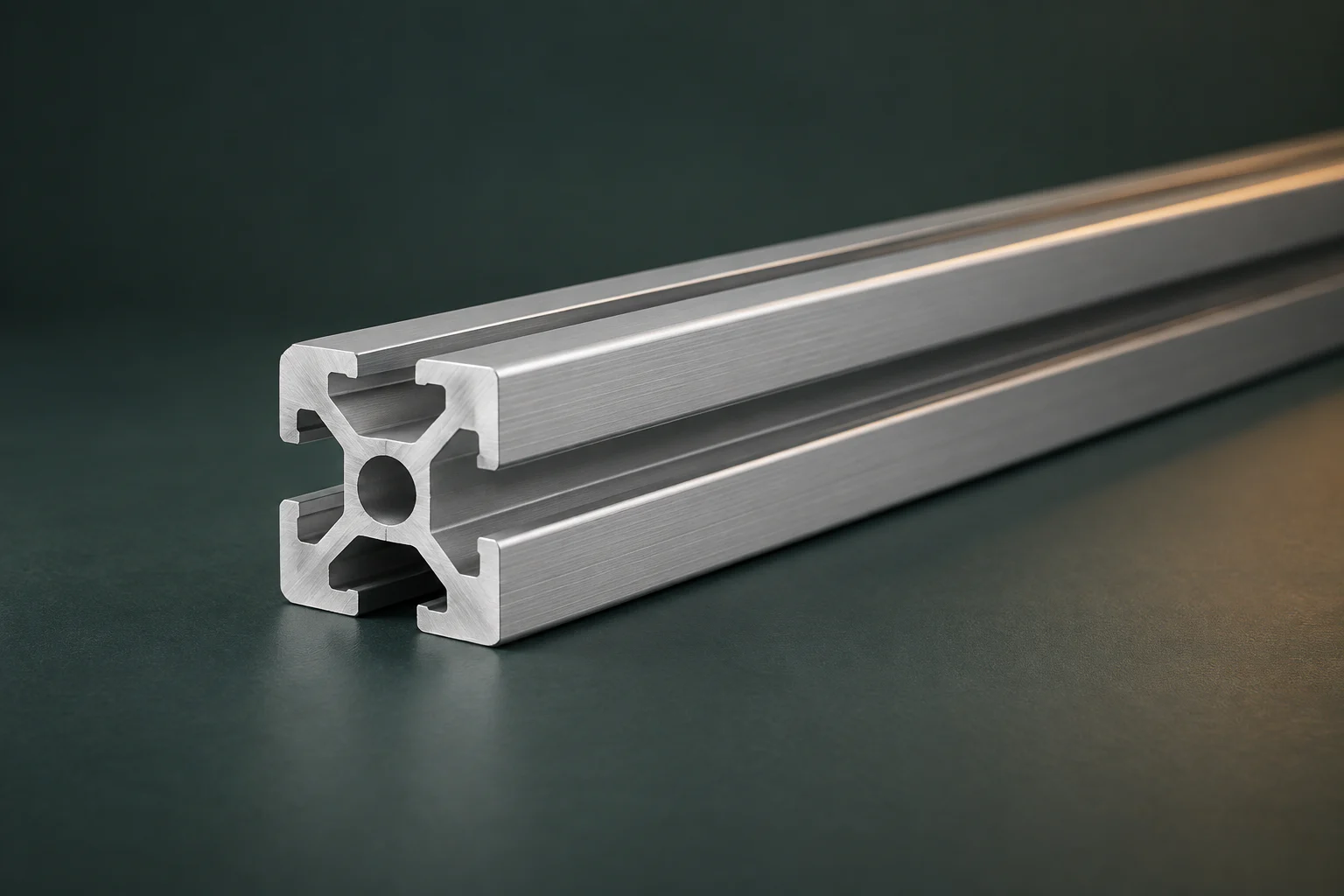

Silver Euro T-Slot 4040 Series aluminum extrusion
T-Slot Extrusions

TS4040-6063T5

Euro T-Slot 4040 Series

Euro T-Slot 4040 Series is a 40 × 40 mm, 6063-T5 aluminum extrusion family for modular industrial frames. Choose the 8 or 10.2 mm slot option, confirm the 1.4–3 mm wall option, finish, length, interfaces and quantity before requesting a quote.

Profile series
4040
Confirmed section information
40 × 40 mm; 8 / 10.2 mm slot options; 1.4–3 mm wall options
Alloy / temper
6063-T5
System
Euro T-slot system
Available finishes
Mill finish · Anodized · Powder coated
Illustrative silver Euro T-Slot 2020 aluminum extrusion with a square cut end and continuous longitudinal grooves
T-Slot Extrusions

TS2020-6063T5

Euro T-Slot 2020 Series

Euro T-Slot 2020 Series is a 20 × 20 mm, 6063-T5 aluminum extrusion family for light-duty modular frames, automation and prototyping structures. Confirm the 6 mm slot option, the 1.2–2 mm wall option, finish, length, interfaces and quantity before requesting a quote.

Profile series
2020
Confirmed section information
20 × 20 mm; 6 mm slot options; 1.2–2 mm wall options
Alloy / temper
6063-T5
System
Euro T-slot system
Available finishes
Mill finish · Anodized · Powder coated
Illustrative silver Euro T-Slot 3030 aluminum extrusion with a square cut end and continuous longitudinal grooves on a charcoal background
T-Slot Extrusions

TS3030-6063T5

Euro T-Slot 3030 Series

Euro T-Slot 3030 Series is a 30 × 30 mm, 6063-T5 aluminum extrusion family for medium-duty modular frames, machine guarding, automation and prototyping structures. Confirm the 8 mm slot option, the 1.5–3 mm wall option, finish, length, interfaces and quantity before requesting a quote.

Profile series
3030
Confirmed section information
30 × 30 mm; 8 mm slot options; 1.5–3 mm wall options
Alloy / temper
6063-T5
System
Euro T-slot system
Available finishes
Mill finish · Anodized · Powder coated
AI-generated silver Euro T-Slot 4545 aluminum profile with a square end, longitudinal slots and finely textured metal surfaces
T-Slot Extrusions

TS4545-6063T5

Euro T-Slot 4545 Series

Euro T-Slot 4545 Series is a 45 × 45 mm aluminum extrusion family in 6063-T5 for specification-led modular framing. This 45×45 T-slot aluminum profile has a 10 mm slot option, 1.5–3 mm wall options and three surface finish choices. Define the selected section, connections and cut-length list for your equipment frame, workstation or automation support, then request a quote.

Profile series
4545
Confirmed section information
45 × 45 mm; 10 mm slot option; 1.5–3 mm wall options
Alloy / temper
6063-T5
System
Euro T-slot system
Available finishes
Mill finish · Anodized · Powder coated
AI-generated silver Euro T-Slot 6060 aluminum profile concept with a square cut end and finely textured longitudinal surfaces
T-Slot Extrusions

TS6060-6063T5

Euro T-Slot 6060 Series

Euro T-Slot 6060 Series is a 60 × 60 mm aluminum extrusion family for modular equipment frames, workstations and automation supports. Compare separate sections with 8.2 or 10.2 mm groove openings, then specify the drawing, connections and cut-length list your assembly needs. The quotation target is 6063-T5 aluminum with an anodized finish; the selected section and actual supply are confirmed during quotation.

Profile series
6060
Confirmed section information
60 × 60 mm; 8.2 / 10.2 mm groove-opening targets; selected drawing governs supply
Alloy / temper
6063-T5
System
Euro T-slot system
Available finishes
Anodized

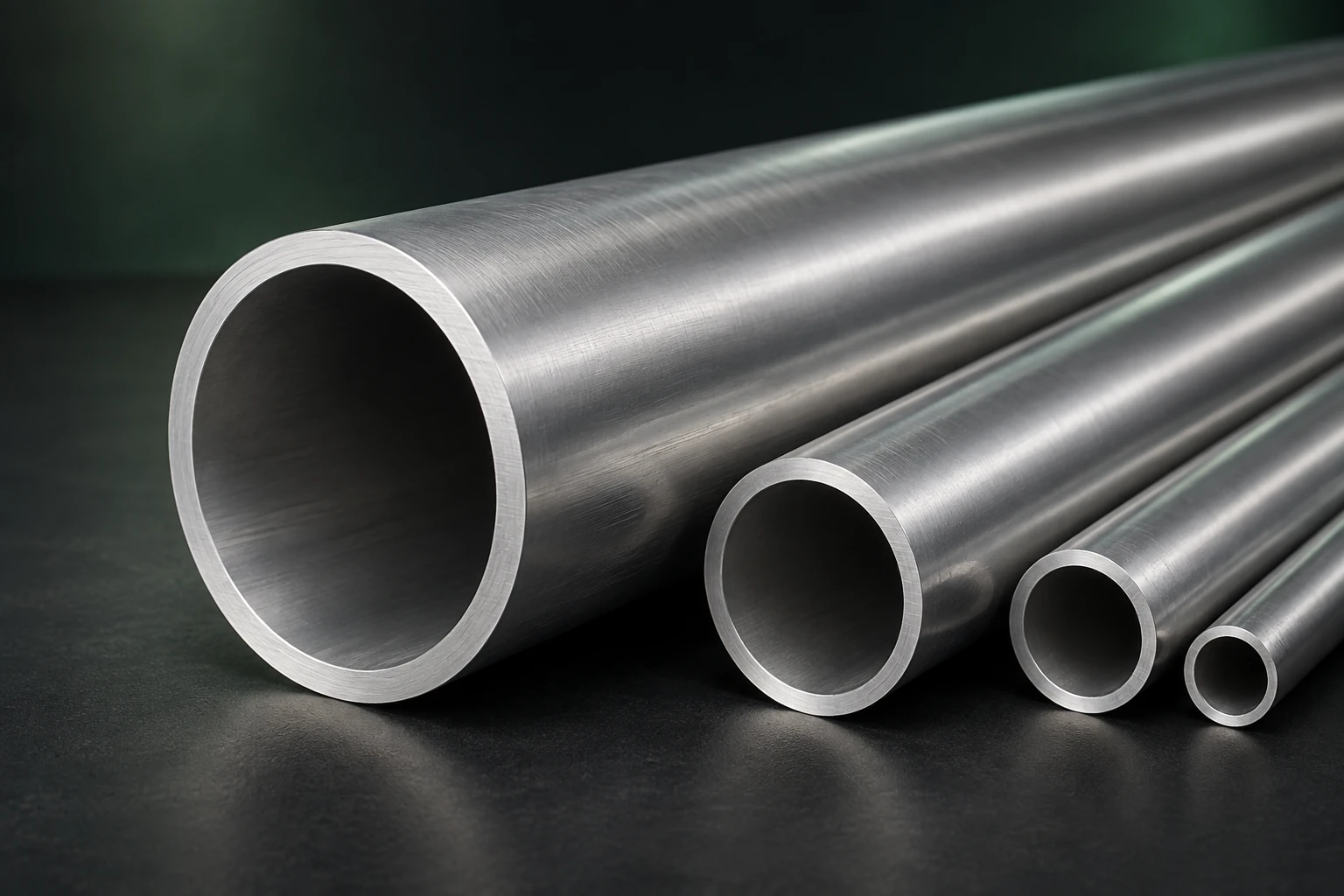

Illustrative silver aluminum round tubes with hollow circular end faces
Aluminum Tubes

RT6063-T5

Round Tube 6063-T5

Specify a 6063-T5 round tube for an industrial assembly or fabricated part. Share the outside diameter, wall thickness, cut length, finish, quantity and destination so the sourcing requirement can be reviewed.

Profile series
Round tube
Confirmed section information
Outside diameter × wall thickness; confirm dimensions and cut length in your inquiry
Alloy / temper
6063-T5
System
Universal section
Available finishes
Mill finish · Anodized · Powder coated

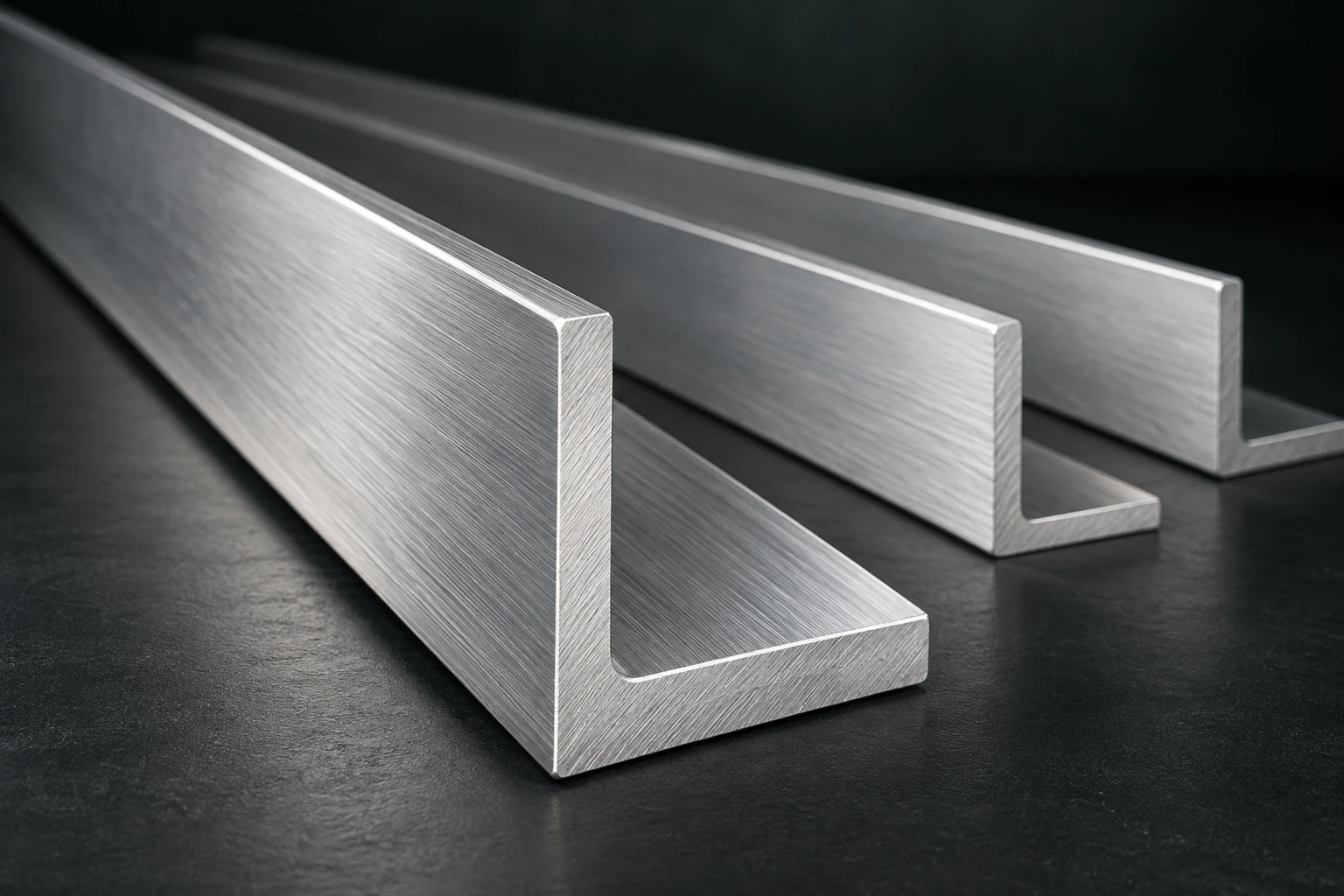

Illustrative brushed silver equal-leg aluminum angle extrusions with visible L-shaped profiles
Aluminum Angles

EA6061-T6

Equal Angle 6061-T6

Specify a 6061-T6 aluminum angle with equal-length legs for an industrial assembly. Share the required leg size, thickness, length, finish, quantity and any fit or fabrication details to start a sourcing review.

Profile series
Equal angle 6061-T6
Confirmed section information
Equal legs (A × A) and thickness (t); specify dimensions and length in your inquiry
Alloy / temper
6061-T6
System
Universal section
Available finishes
Mill finish · Anodized · Powder coated
AI-generated silver 8080 T-slot aluminum profile concept with a square cut face and fine longitudinal metal grain on a graphite background
T-Slot Extrusions

TS8080

Euro T-Slot 8080 Series

Euro T-Slot 8080 Series is a nominal 80 × 80 mm aluminum profile family for modular framing requirements. Start with your cross-section drawing and mating hardware, then send the material, surface finish, cut lengths and quantities for quotation. APW handles the inquiry around your selected section; groove dimensions, alloy, temper and supply details are confirmed against that specification.

Profile series
8080
Confirmed section information
80 × 80 mm nominal section; groove, material and finish to be confirmed against your drawing
System
Euro T-slot system
AI-generated silver compact GB 2020G square-slot aluminum profile concept on graphite
T-Slot Extrusions

TS2020G

GB T-Slot 2020G Series

APW supplies GB T-Slot 2020G Series aluminum profiles in the two listed versions for compact equipment enclosures, instrument racks and display frames. Choose the section that matches your layout and hardware, then send your cut lengths and quantities for a quote. Starting from an existing frame? Photos and basic measurements can begin the identification process.

Profile series
GB 2020G
Confirmed section information
20 × 20 mm nominal family; choose the separate section and hardware interface
Alloy / temper
6063-T5
System
GB T-slot system
Available finishes
Anodized
Two satin silver square-slot aluminum profiles on a graphite background
T-Slot Extrusions

TS3030G

GB T-Slot 3030G Series

Plan compact equipment frames, panel supports and adaptable fixtures with the GB T-Slot 3030G Series. These nominal 30 × 30 mm references include distinct slot geometries and finishes. Use the frame example, connection concepts and model table to define your cut list and mating hardware, then send APW your requirements for review. The selected drawing governs fit; every requested model requires quotation and supply confirmation.

Profile series
GB 3030G
Confirmed section information
30 × 30 mm nominal family; selected drawing defines the section
System
GB T-slot system
Two satin silver square-slot aluminum profiles arranged on a graphite studio surface
T-Slot Extrusions

TS4040G

GB T-Slot 4040G Series

Plan workbench frames, machine guards and equipment supports with the GB T-Slot 4040G Series. These nominal 40 × 40 mm references include distinct slot geometries, wall thicknesses and published masses. Use the frame example, connection concepts and model table to define your cut list and mating hardware, then send APW your requirements for review. The selected drawing governs fit; every requested model requires quotation and supply confirmation.

Profile series
GB 4040G
Confirmed section information
40 × 40 mm nominal family; selected drawing defines the section
System
GB T-slot system
Silver and black anodized V-Slot 2020 profile visualizations with visible cut ends on a dark graphite surface
V-Slot Extrusions

VS2020-6063T5

V-Slot 2020 Series

V-Slot 2020 Series is a 20 × 20 mm aluminum extrusion with V-shaped groove edges for compatible wheel-guided motion and modular framing. APW supplies standard and one-side-closed sections in silver or black anodized finishes. Compare the four variants, then send your cut list and mating-part requirements for a quote.

Profile series
V-Slot 2020 Series
Confirmed section information
20 × 20 mm · 6.2 mm slot
Alloy / temper
6063-T5
System
Universal section
Available finishes
Anodized
Silver and black anodized V-Slot 2040 profile visualizations showing rectangular cut ends, two axial holes and twin grooves on a dark graphite surface
V-Slot Extrusions

VS2040-6063T5

V-Slot 2040 Series

V-Slot 2040 Series is a 20 × 40 mm aluminum extrusion whose V-shaped groove edges run matching wheels, combining a frame member and a linear guide in one profile. APW supplies standard and one-side-closed sections in silver or black anodized finishes. Compare the four variants, then send your cut list and mating-part requirements for a quote.

Profile series
V-Slot 2040 Series
Confirmed section information
20 × 40 mm · 6.2 mm slot
Alloy / temper
6063-T5
System
Universal section
Available finishes
Anodized
Illustrative silver aluminum round tubes with satin surfaces and uniform hollow circular ends
Aluminum Tubes

RT6063-T6

Round Tube 6063-T6

Source 6063-T6 aluminum round tube for fabricated frames, architectural details and industrial components. Compare metric and inch sizes, select mill, anodized or powder-coated finish, then send your cut list for a project quote.

Profile series
Round tube
Confirmed section information
Outside diameter × wall thickness; metric and inch sizes listed below
Alloy / temper
6063-T6
System
Universal section
Available finishes
Mill finish · Anodized · Powder coated
Three silver solid aluminum round bars with circular end faces on a light gray surface
Aluminum Round Bars

RB6061-T6

Round Bar 6061-T6

Choose Round Bar 6061-T6 machining stock around your finished part. Compare reference diameters, work through machining allowance and cutting examples, and prepare a complete RFQ with your drawing, tolerances, lengths and quantity. Aluminum Profile Works reviews your specification for supply confirmation and a quote.

Profile series
Solid round bar 6061-T6
Confirmed section information
Solid circular section; specify diameter, tolerance and cut length for supply confirmation
Alloy / temper
6061-T6
System
Universal section
Three silver solid aluminum square bars in different side sizes with square cut ends on a light gray surface
Aluminum Square Bars

SB6061-T6

Square Bar 6061-T6

Choose Square Bar 6061-T6 machining stock around your finished part. Compare reference side sizes, work through machining allowance and cutting examples, and prepare a complete RFQ with your drawing, tolerances, lengths and quantity. Aluminum Profile Works reviews your specification for supply confirmation and a quote.

Profile series
Solid square bar 6061-T6
Confirmed section information
Solid square section; specify side size, tolerance and cut length for supply confirmation
Alloy / temper
6061-T6
System
Universal section
Three silver solid aluminum hexagonal bars in different across-flats sizes with complete six-sided cut ends on a light gray surface
Aluminum Hex Bars

HB6061-T6

Hex Bar 6061-T6

Choose Hex Bar 6061-T6 machining stock for parts that retain six wrench flats. Compare hex and round starting stock, check allowance using dimensional limits, and follow a connector example from blank to threaded ends. Send your finished drawing, AF requirements, lengths and quantity to Aluminum Profile Works for supply review and a quote.

Profile series
Solid hex bar 6061-T6
Confirmed section information
Solid hexagonal section; specify across-flats size, tolerances and cut length for supply confirmation
Alloy / temper
6061-T6
System
Universal section
Silver aluminum LED heat sink with a solid rectangular base and continuous parallel fins, viewed from an elevated three-quarter angle
Heat Sink Profiles

LED-HEAT-SINK-PROFILE

LED Heat Sink Profile

An LED Heat Sink Profile provides a mounting base and extended fin surfaces for transferring heat from an LED assembly to its surroundings. Aluminum Profile Works supplies finned aluminum profiles in standard and custom specifications for lighting manufacturers and OEM buyers. Share the section drawing, cooling conditions, mounting interface, finished lengths and quantity to request a quote.

Profile series
Finned aluminum extrusions for LED lighting
Confirmed section information
Standard and custom sections; define the base, fins, mounting face and finished length by drawing
System
Universal section
Silver aluminum straight-fin heat sink with a continuous rectangular base and parallel open channels in three-quarter view
Heat Sink Profiles

FINNED-HEAT-SINK-PROFILE

Finned Heat Sink Profile

A Finned Heat Sink Profile combines a continuous aluminum base with projecting fins to spread heat and expose more surface to the surrounding air. Aluminum Profile Works supplies standard and custom sections for power supplies, industrial electronics and lighting assemblies. Compare section dimensions below, then send your drawing, finished lengths, quantity and cooling conditions for a quote.

Profile series
Straight-fin aluminum heat sink extrusions
Confirmed section information
Standard and custom cross-sections; specify width, height, base, fins and finished length by drawing
System
Universal section

Can't find the right product? Let us help.

Tell us the product, specification, or application. You can inquire even if the details are incomplete.
